Designed from the ground up to take advantage of the energy efficiency of r290 refrigerant the XMD range significantly reduces your running costs. The XMD range can offer energy savings of up to 50% when compared against traditional open fronted multidecks and even deliver savings of up to 25% against similar glass door cabinets.

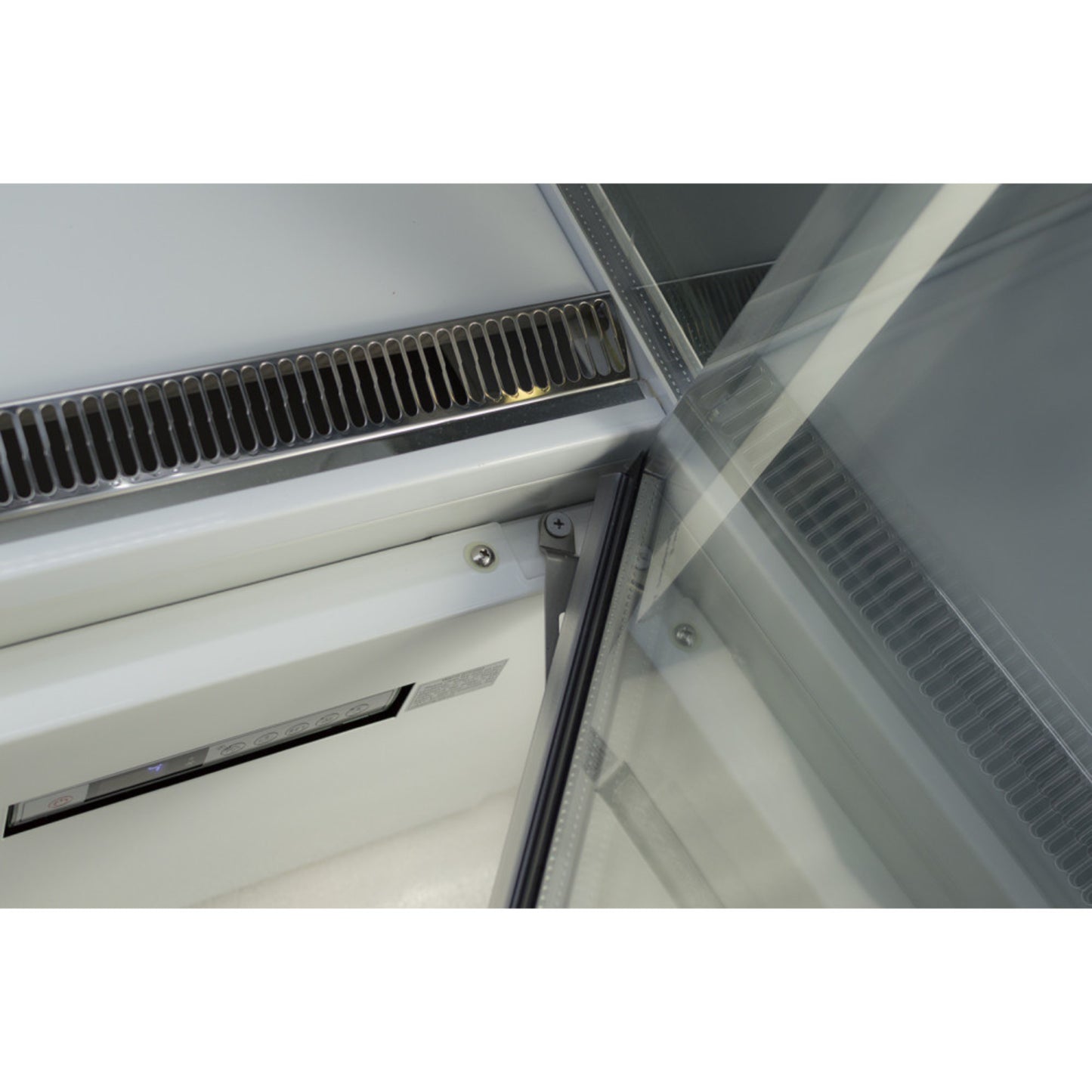

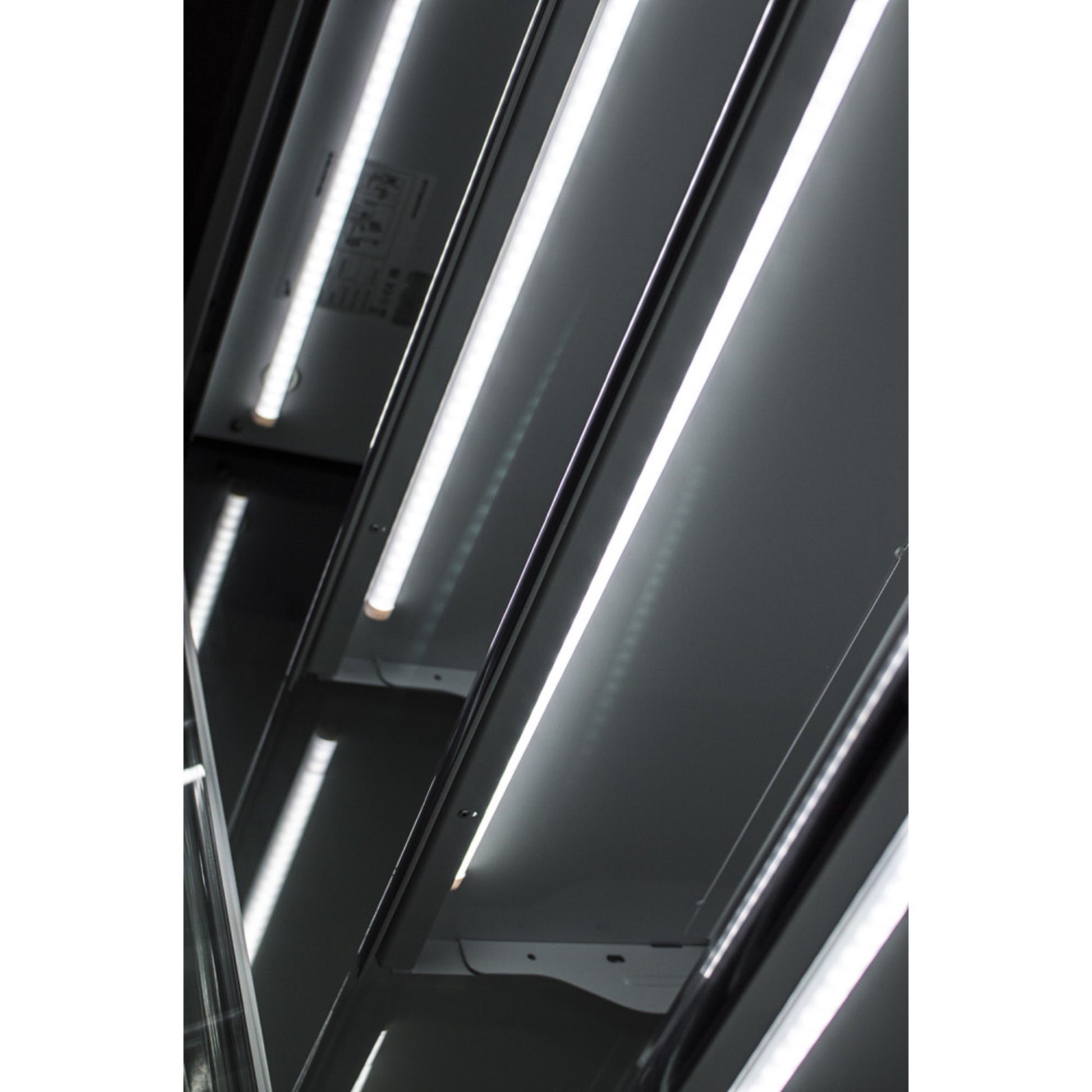

Brushless EC fans are fitted to both the condenser and evaporator to ensure low running costs and increased reliability. Protected by the self closing doors the single air curtain system ensures low operating costs and even temperatures throughout the cabinet. Low wattage, cool running undershelf led lighting reduces energy consumption and running costs whilst brilliantly illuminating the cabinet. The digital temperature controller is fitted with 2 light switches to allow you to turn off the undershelf lighting and top lighting individually to further reduce costs overnight or during quiet periods. The self closing doors have an anti-glare low e coating with a ug of ≤1.8 To reduce heat ingress into the cabinet further reducing energy costs.

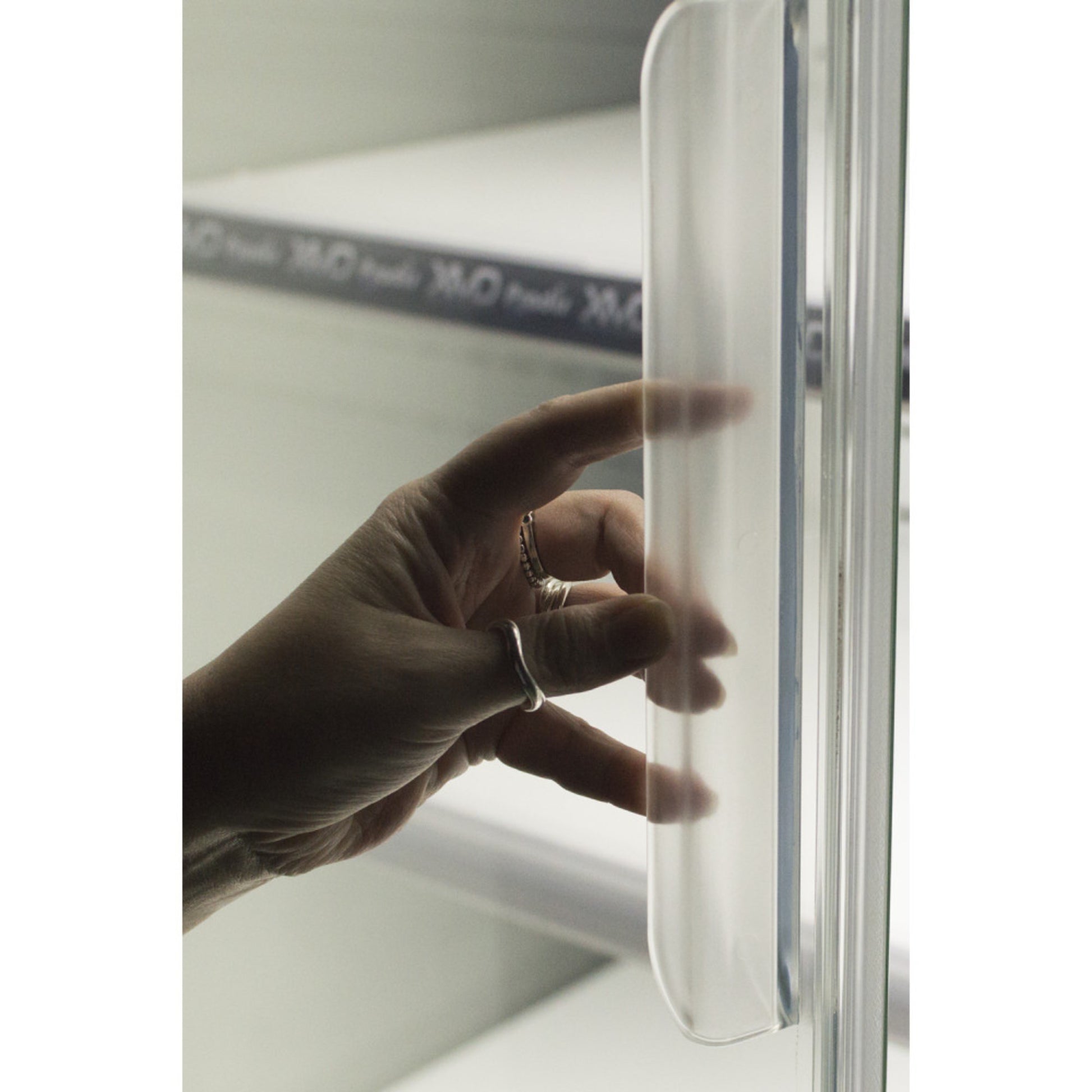

Panoramic end walls allow for all around visibility of your produce, catching the customers’ eye at any angle. The frameless glass doors allow for an unobstructed view into the cabinet whilst keeping the cold air inside increasing the energy efficiency of the cabinet and reducing running costs. Each shelf is lit from above with bright under shelf led light strips ensuring all produce is lit brilliantly and evenly. The low fronted design of the XMD multidecks increases the available display area further maximising the sales potential of each cabinet.

The cabinet is fitted with 5 levels of extra deep 450mm shelving to allow for maximum load capacity. Each shelf can be adjusted in both height and angle allowing for ultimate flexibility optimising the space available no matter what size of produce is being loaded. The 1875 and 2500 models benefit from split shelving further increasing the flexibility of the cabinets.
All XMD cabinets can be multiplexed together to form a seamless run of cabinets to perfectly fit your store. Each cabinet comes complete with a multiplexing kit to allow for quick and easy installation without the need to order optional extras.

The XMD cabinets are available in jet black ral9005 and signal white ral9003 finishes. The eye catching black finish creates a modern look in any store while the black interior and brilliant white led lighting makes the produce stand out. The white finish is ideal for adding additional cabinets to existing runs or for farm shops or supermarkets that need a more traditional look. The multidecks can be customised by adding the optional solid end panel where the panoramic end panel is not required. All cabinets are plug and play and run from a 13amp plug for easy installation and effortless relocation making them ideal not only for permanent installation in a store but also for seasonal displays and retail promotions.

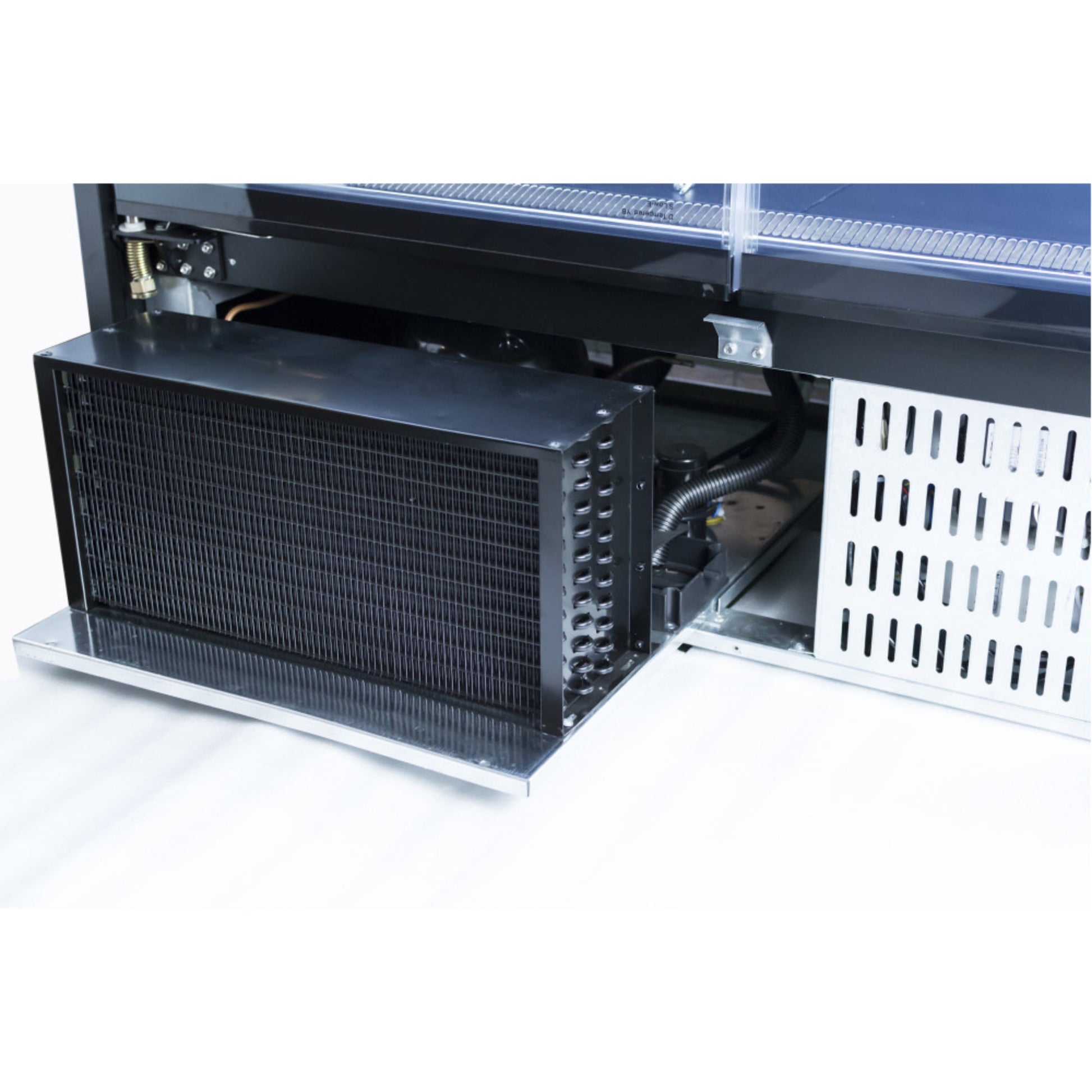

For quick and easy service access the front grill is secured with neodymium magnets and the low maintenance condensing unit is mounted onto a slide out panel for effortless service.

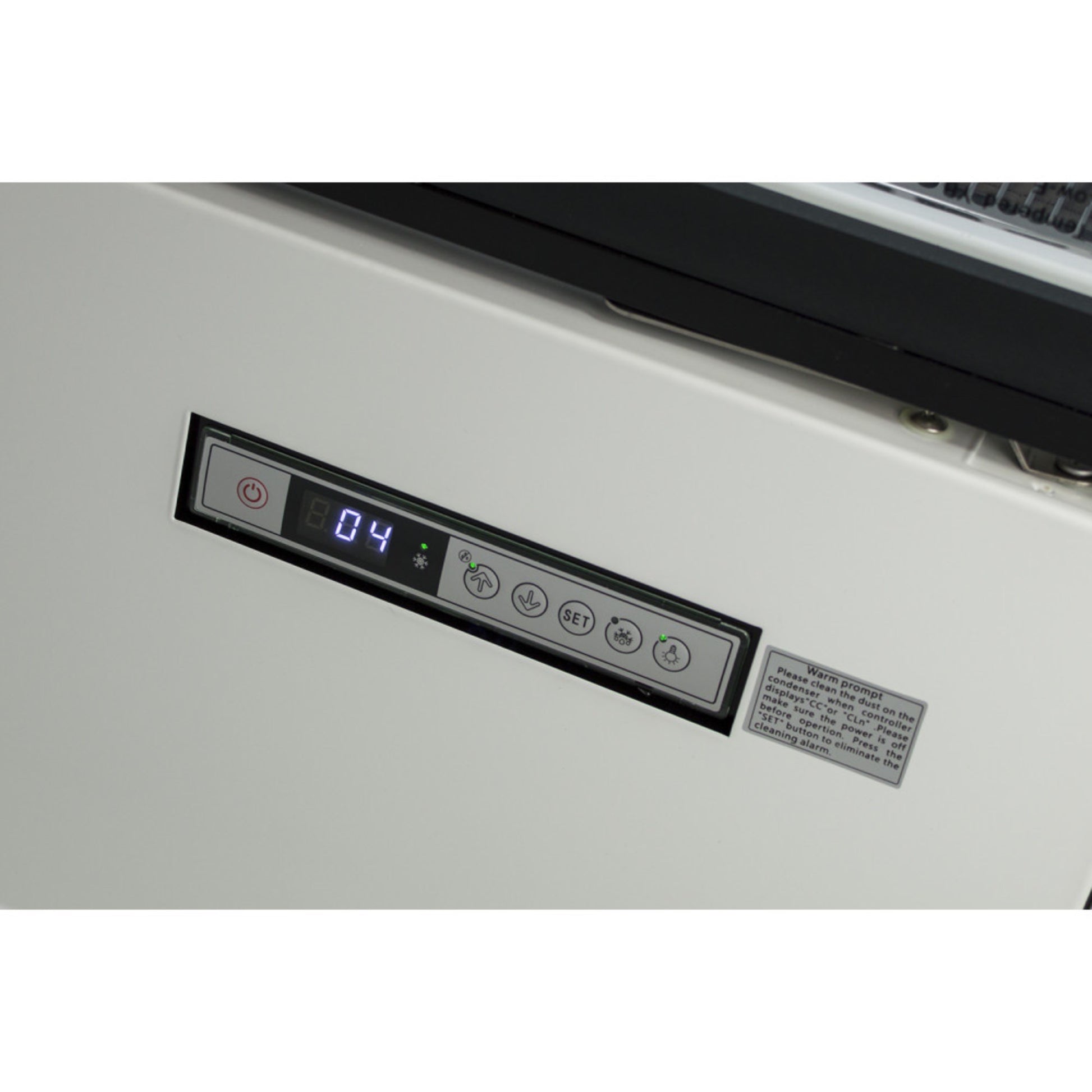

The cabinet is controlled by a cutting edge HMI digital controller which not only monitors and maintains cabinet temperature whilst maintaining cooling efficiency. The controller has a built in condenser cleaning alarm which prompts the end user to ensure the condenser is cleaned regularly. The XMD range is tested to iso-23953 standards to ensure constant and even cabinet temperature whilst delivering energy savings. XMD multidecks have a 3m1 (25°c 60%rh -1°c to +5°c) cabinet classification to ensure produce is maintained at a temperature of -1°c to +5°c making the cabinet ideal for storage of packaged fresh meat, dairy, fruit & vegetables and drinks.

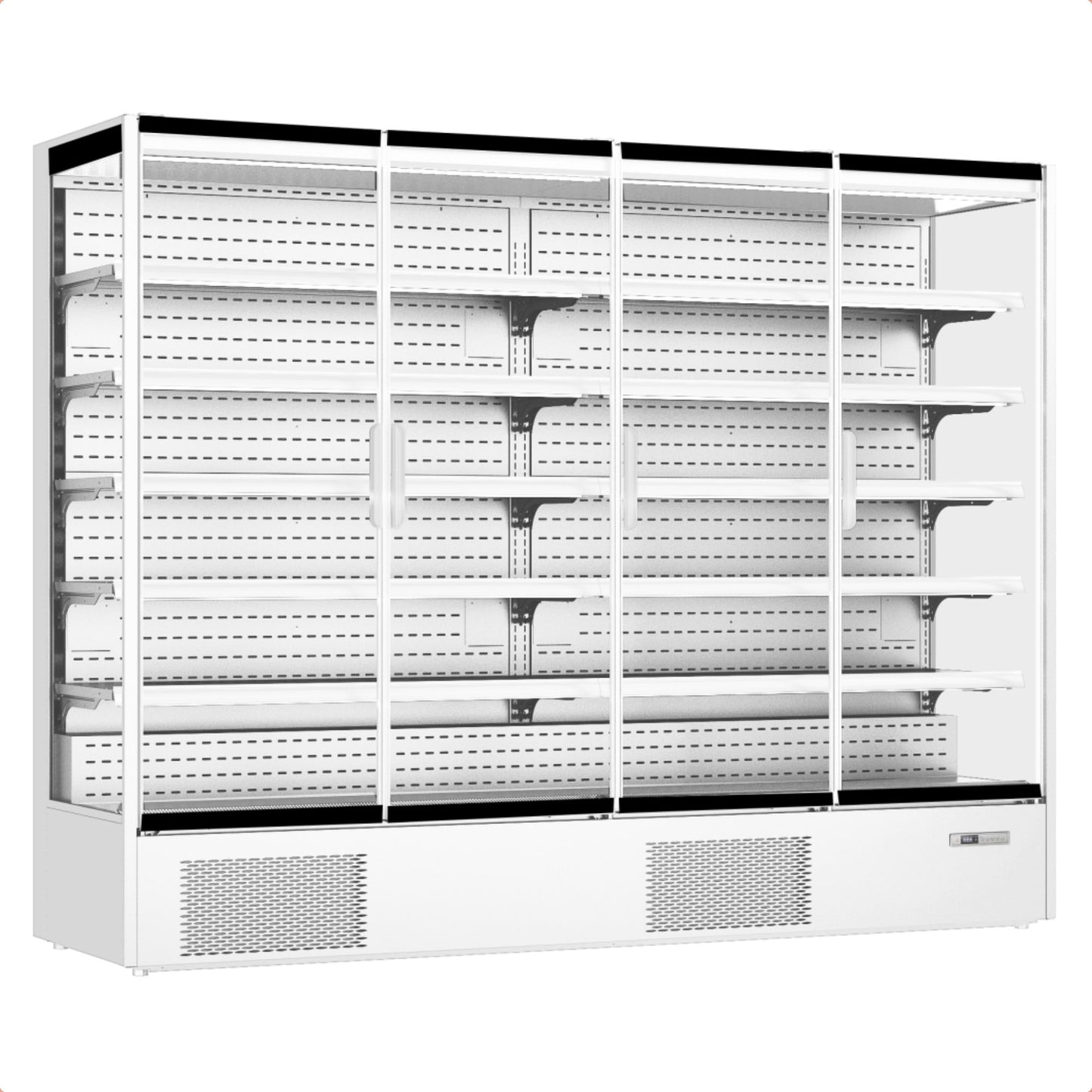

• Dimensions (d,w,h mm): 740mm x 2560mm x 2010mm

• 2496mm Shelf Width

• Signal white RAL9003 interior and exterior finish

• Double glazed Low E frameless glass self closing doors

• 1540mm usable internal height

• 1248mm x 450mm shelf size

• 330mm deep base

• 10 shelves + base as standard

• 10 x undershelf LED lighting strips + horizontal full width ceiling mounted LED strip

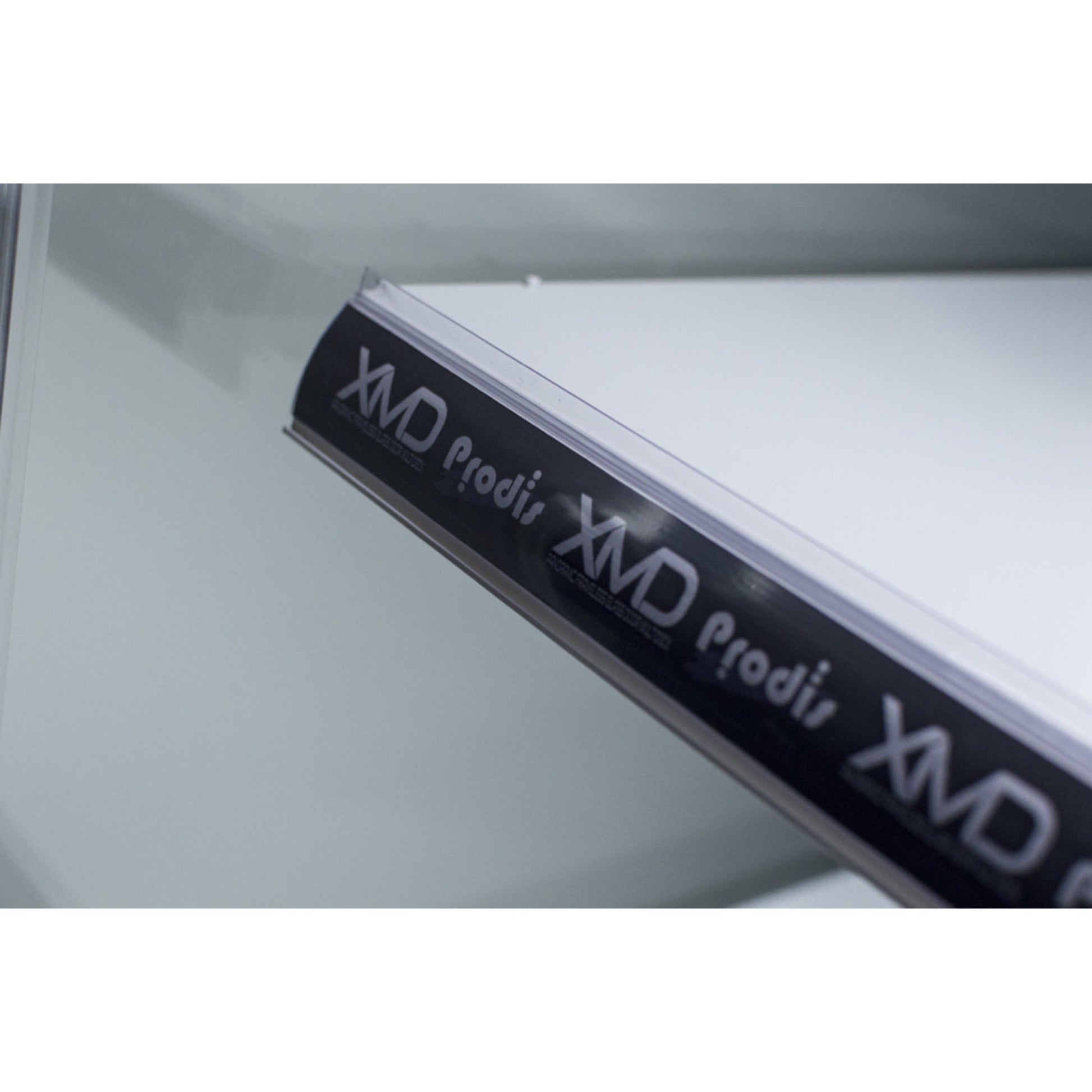

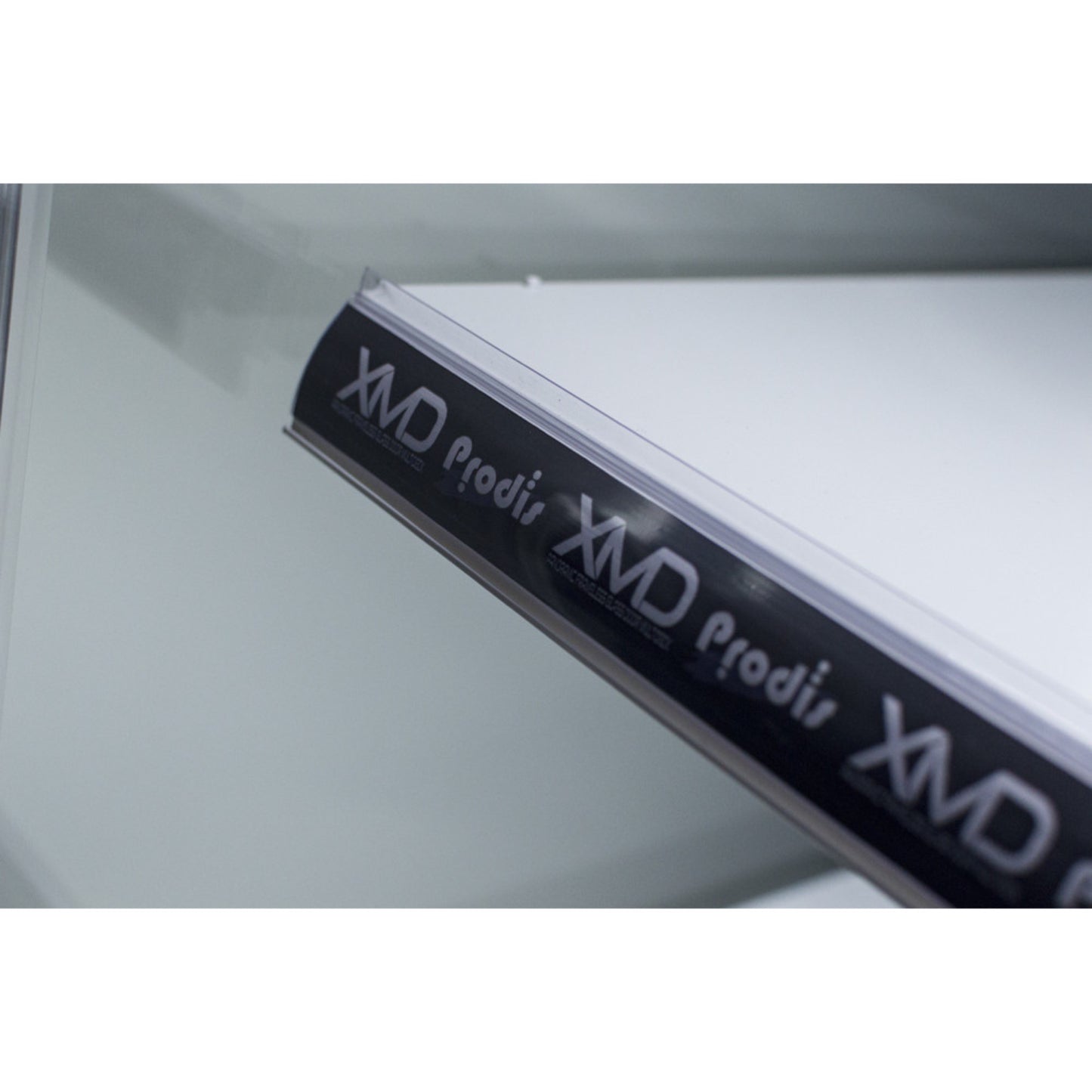

• Shelf edge ticket strips

• Digital temperature controller with built in light switch

• 1529 litre net volume

• 5.00m² display area

• 3M1 -1°c + +5°c temperature range

• Climate class 3

• 10.2kWh / 24h energy consumption

• B energy efficiency rating

• Noise level ≤58 dB

• R290 hydrocarbon refrigeration

• 1060w power rating

• 13amp plug in cabinet

• 2560 x 740 x 2010 (w,d,h mm)

• 12 months parts and labour warranty
